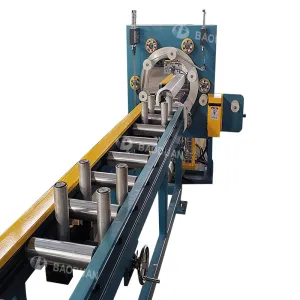

SPR series Pipe wrapping/packing machine

APPLICATION:

SPR series automatic Wrapping Machine for horizontal was designed mainly for metallurgical industries. The machine could be widely used in the exterior wrapping of horizontal shapes such as steel tube, stain less steel tube aluminum tube rubber tube, shapes like bar floor board & etc.

FEATURES:

PLC & HMI are adopted.

Double-ring & double-rub wheel devices make working more safe stable & energetic.

Special conveying device is easy for loading & conveying the package strengthens the transfer capacity.

Wide packing belt can be used for cutting the packing cost & making the work more efficiency.

Indicator alarms automatically when trouble occurs. Trouble can be shown.

Photocell sensor is adopted for setting packing position.

The turning ring is controlled by converter. Overlap rate could be adjusted according to the requirement.

Height of the ring centre could be adjusted.

Separate control panel makes operation & maintenance easily.

Material tension could be adjusted automatically.

TECHNICAI DATA:

Basic feature

● Adopt the PLC & HMI.

● When trouble occurs, the machine automatically alarms and shows the error items.

● the conveyor lines can chose chian belt,roller or belt.

● the machine can automatically tracke the package, accurate positioning, and ensure the safe operation

● Adopt unique tension adjusting mechanism,tension is even, the tension can be increased according to the requirement.

● The ring height could be adjusted fro different object ID &OD

● Manipulator can be adopted to fullfill the function of load and cut the packing material, safe and effective.

● Press roller and side protection roller can be adopted to suit to the single pipe or light object.

● Short objects can be wrapped , the machine can be applied in wide  scope

● Unique packing material adjusting mechanism, the wrapping effect is more perfect.

APPLICATION

SPR Serial Horizontal wrapping machine could be widely used in the wrapping of horizontal objects, such as  weled pipes, steel pipe,seamless tube, copper pipes, aluminum pipe,plastic pipe,bar and so on. The wrapped pakage looks tidy and take the effect of good sealed,anti-rust, moistureproof,anti-sust,anti-aging etc.
